1 Triangle + 2 Container Swivel wheel 2.2T capacity

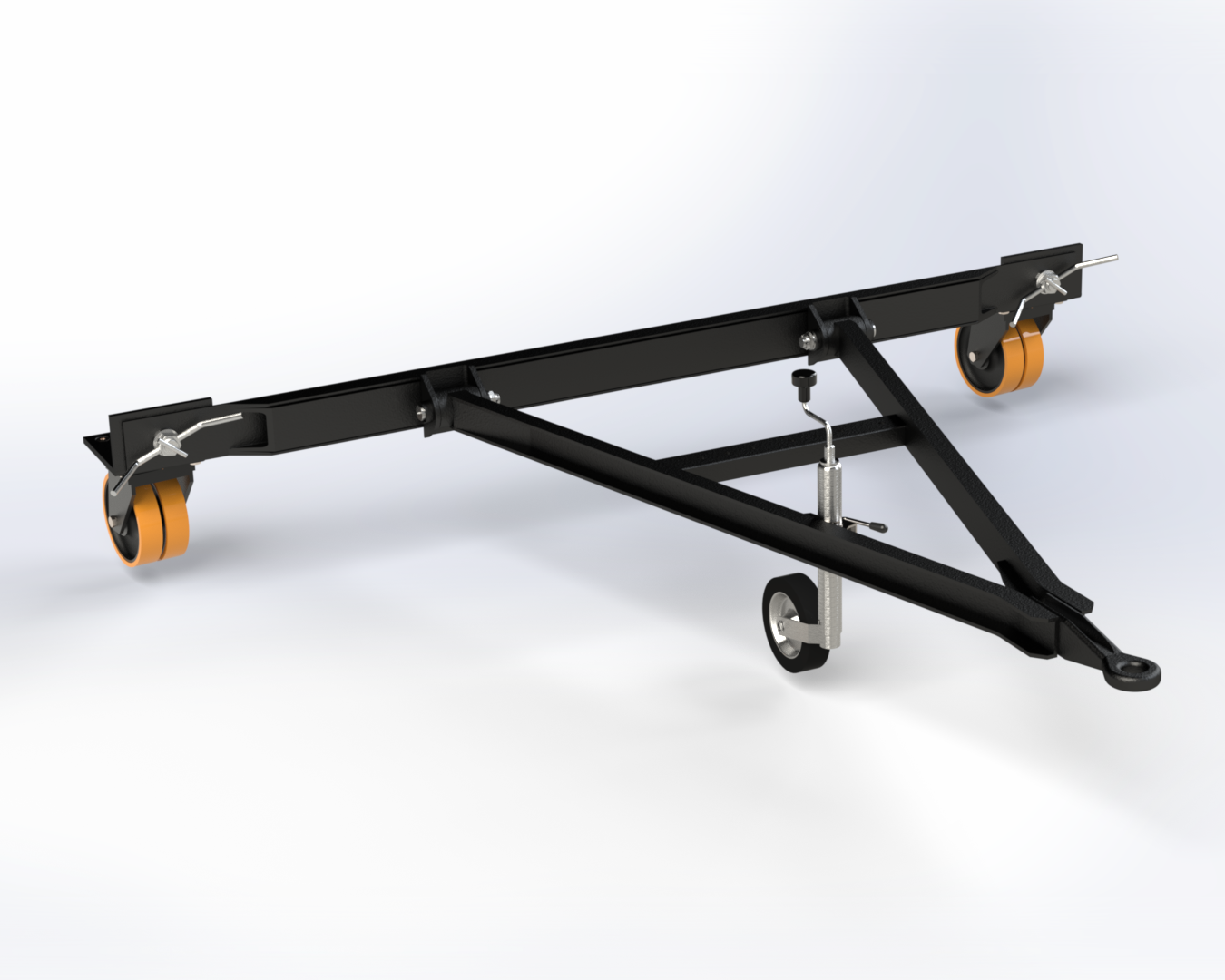

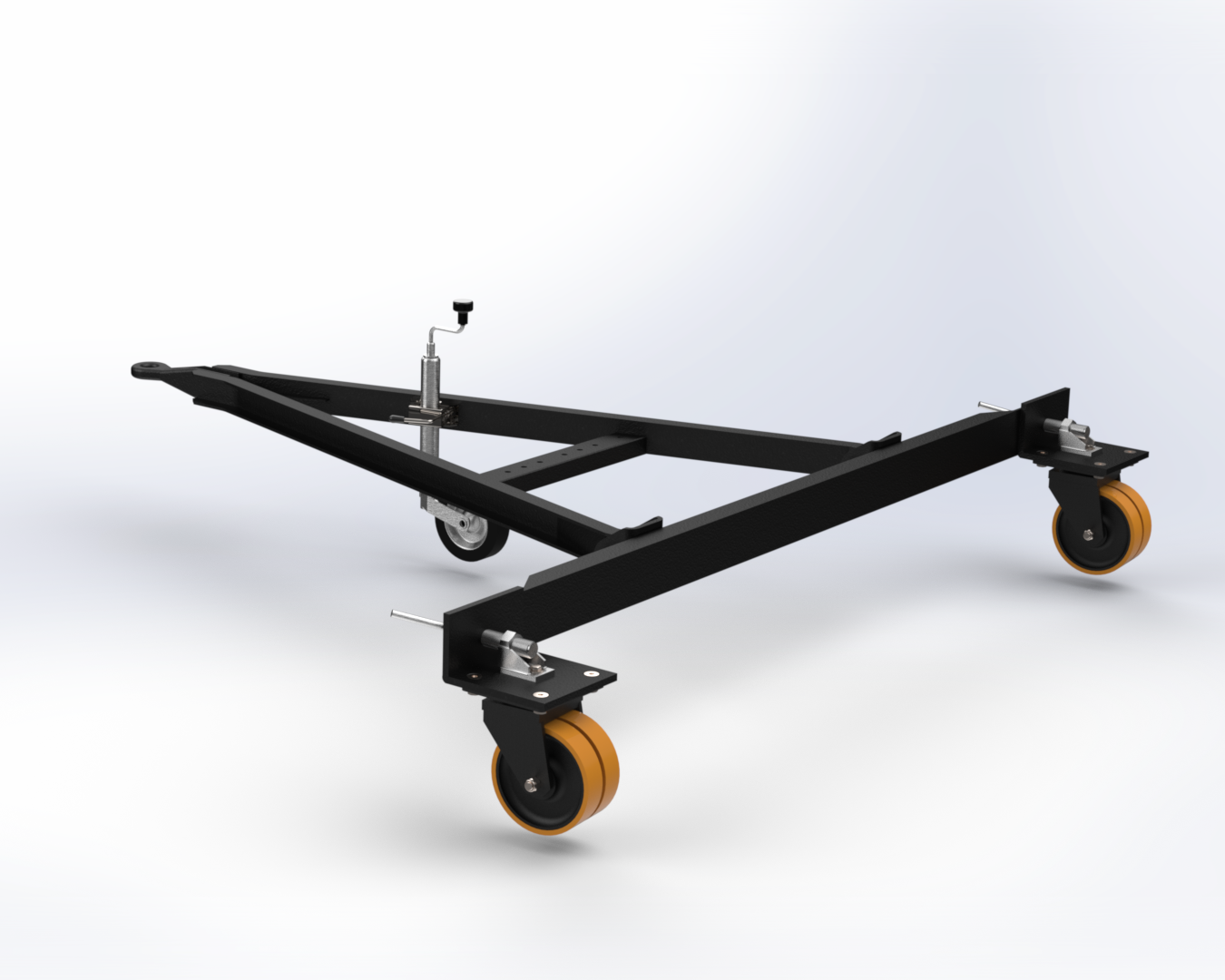

1 x complete steel welded triangle
+ reinforced steel UNP beams
+ support wheelset at frontside for easy mounting at a forklift Capacity :15Tons/15.000kg
– consisting of steel welded reinforcement beams UNP100 + UNP120

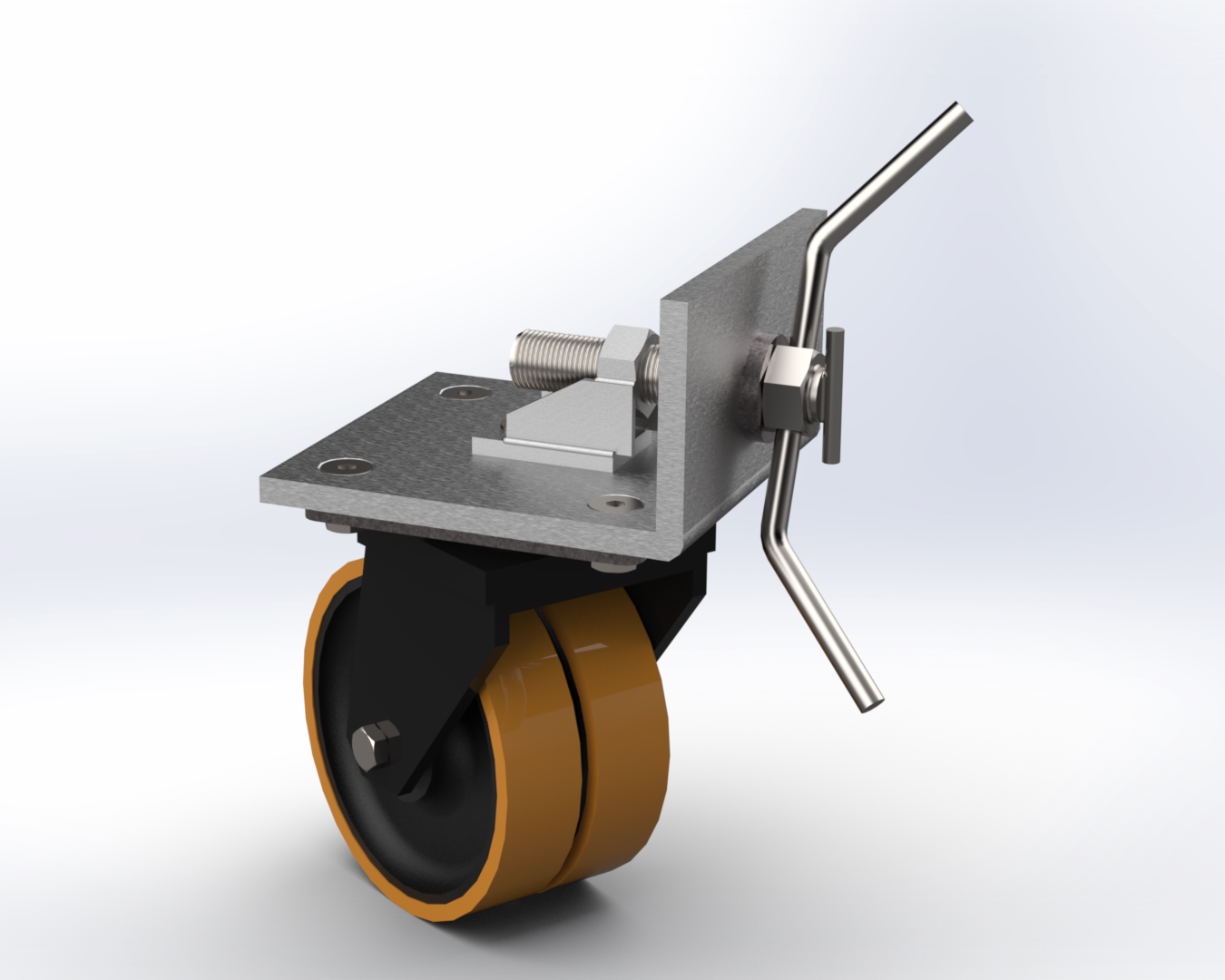

2 x Swivel Container wheels / castors with capacity of 2.2T mounted to the triangle :
– consisting of
- 1 x Swivel heavy duty fabricated steel castor fitted with twin polyurethane tread cast iron wheels
- 1 x steel mountingplate fixed to the wheel
Our heavy duty container castors enable freight containers to be moved quickly & easily without the use of expensive equipment such as cranes, gantries or side loading fork lift trucks.
The castors are supplied complete with special adaptor plates with lock positively by means of a quick action lever into the corner block incorporated into all ISO freight containers.
How much load can ISO container castors bear?
Please note that irregular surfaces and rough terrain increase the peak-load on a single wheel. For the calculation of the required load capacity, we advise dividing the total load of the cargo+the container weight by a factor 2.5.
Shipping container weight 2300KG + cargo load in the shipping container 3200KG = total weight 5500KG
5500 / 2.5 = 2200KG required load capacity per container castors
- 1 Triangle + 2 Container Swivel wheel 2.2T capacity
- 1 Steel triangle, 2 Mounting plates, 2 Swivel wheels
- 2.2T per wheel / 8.8T per set
